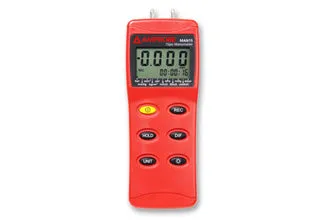

Product Overview

Hand held, accurate and featuring an internal time clock to capture events, these products are designed for HVAC/R technicians or other pneumatic control environment.

Features

Measuring range up to 15 PSI (103.5 kPA)
Necessary tool for gauge and differential pressure measurement
Perfect for applications such as: valves, control sensors in a pneumatic control environment, HVAC/R pressure levels and medical pressure systems
11 selectable units of measure: bar, mmHg, ozin2, kgcm2, psi, inH2O, kpa, ftH2O, inHg, cmH2O, mba
Maximum and minimum value recordings with time stamp help adjust and trouble shoot the pressure systems
Data hold
Large backlight LCD
Auto power off function
Built-in computer USB port for data downloads with optional PC cable and software

Models and Accessories

Feature	MAN02-A	MAN15	MAN30
Measuring range	2 psi (13.8 kPA)	15 psi (103.5 kPA)	30 psi (206.9 kPA)
Accuracy	/- 0.3 % of full scale at /- 77 °F (25 °C)	Max 1 % full scale at /- 77 °F (25 °C)	Max 1 % full scale at /- 77 °F (25 °C)
Response time	0.5 second	0.5 second	0.5 second
Sensitivity resolution	per 0.401 inH2O / 0.001 per 0.0145 psi / 0.1 per mbar	0.01 psi / 0.1kPA / 0.5mmHg / 0.001 kg/cm2	0.01 psi / 0.1kPA / 0.5mmHg / 0.001 kg/cm2
