Product Description
-
Illuminated Beacons & Indicator Banks
-
Motor Less LED Flashing
-
External Buzzer Volume Adjustor 70DB To 90 DB
-
Straight & Side Wiring-More Flexible
Product Specification
|
Brand |
Schneider |
|
Product Code | Color |

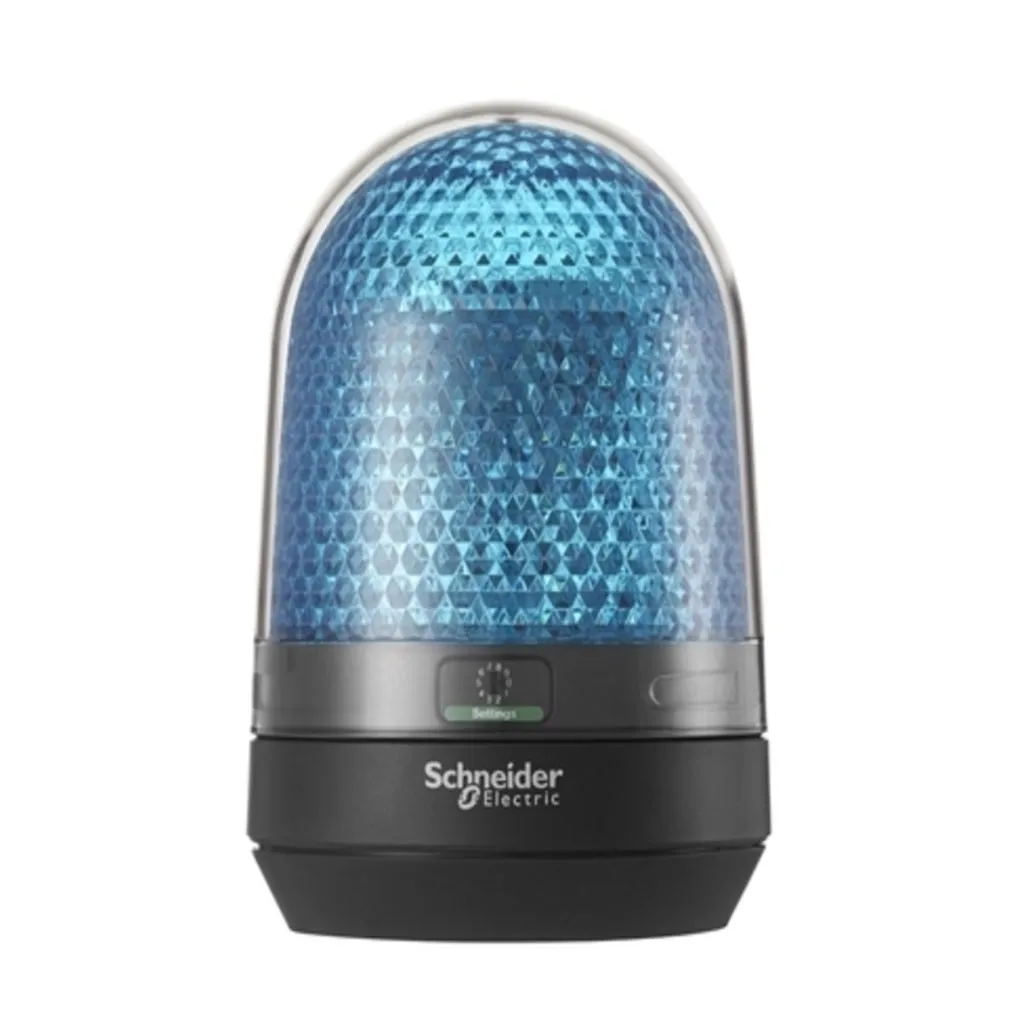

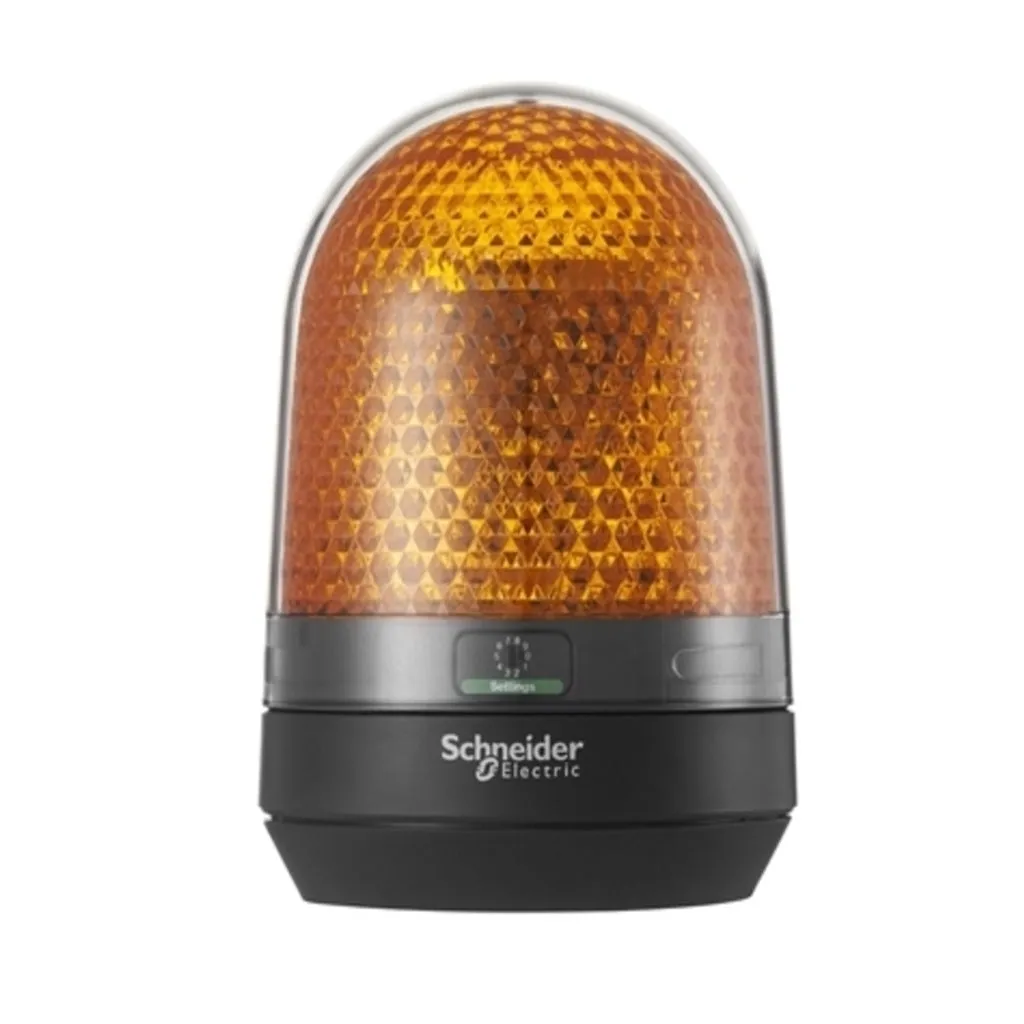

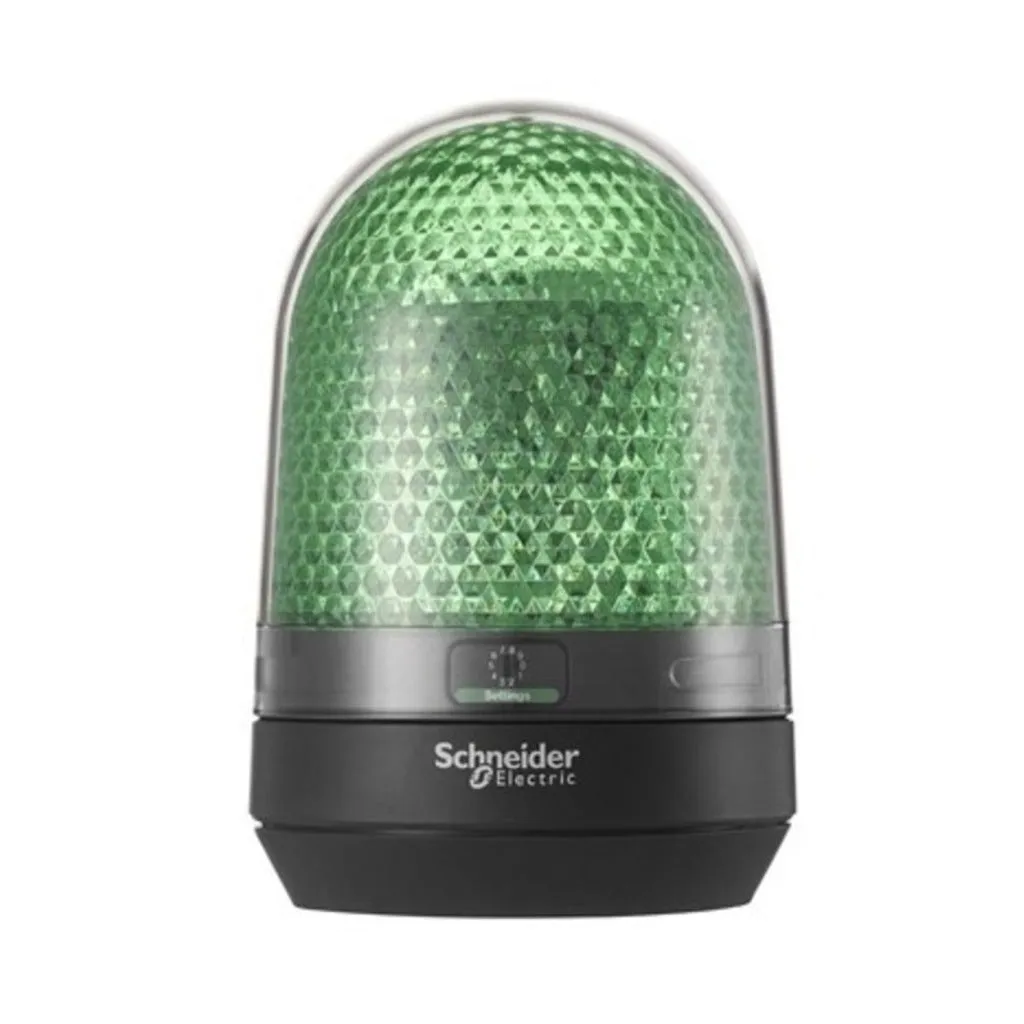

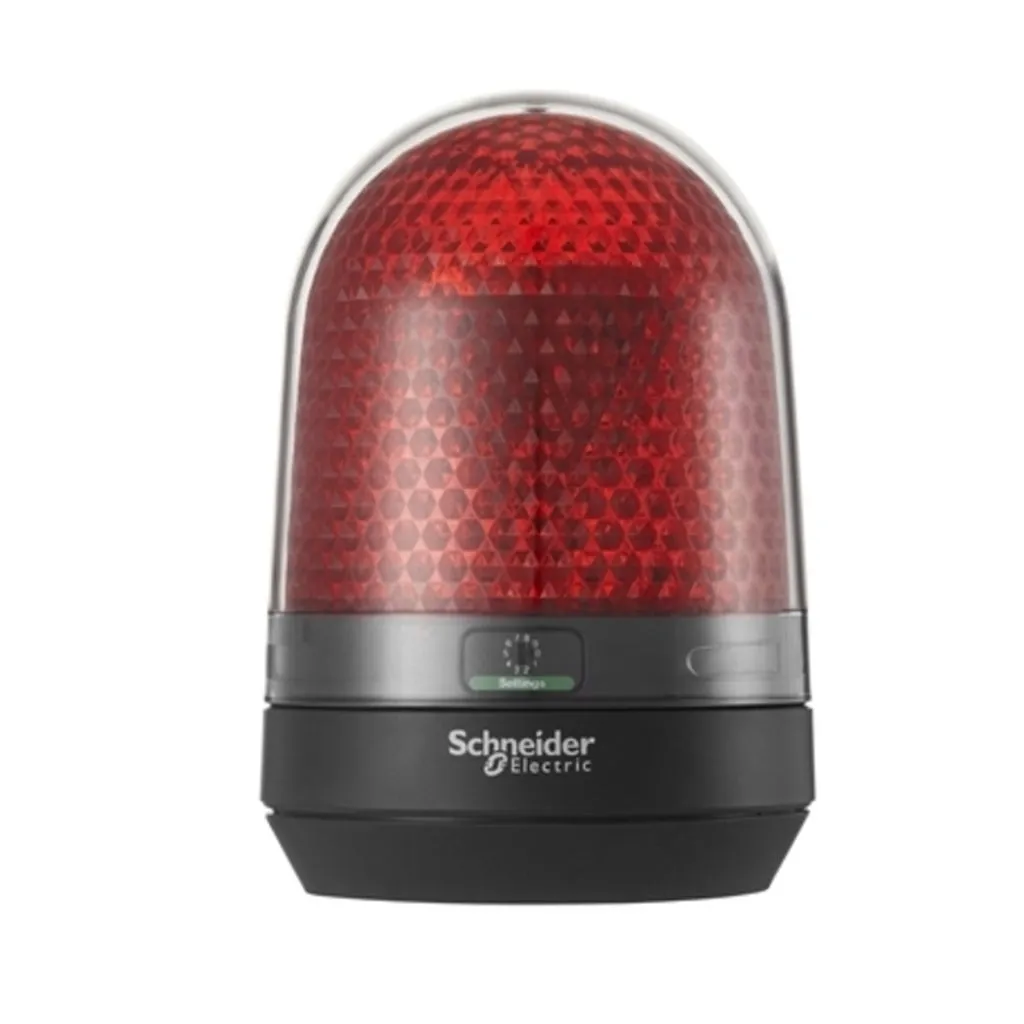

XVR3M03S | Green XVR3M04S | Red XVR3M05S | Orange XVR3M06S | Blue |
|
Product Type |
Multifunction LED Beacon With Buzzer |
|
Device Short Name |
XVR3 |
|
Rated Supply Voltage |
100-230 V AC |
|
Beacon Or Indicator Bank Unit Type |
LED unit |
|
Sound Signalling |
Buzzer : 70...90 dB at 1 m |
|
Mounting Diameter |
100 mm |
|
Device Apllication |
Forklift Bulldozer Automated Guided Vehicle(AGV) |
|
Signalling Type |
Flashing Bliking Roating |
|
Assembly Style |
Ready Assembled |
|
Inrush Current |
0.5 A |
|
Power Consumption In W |
3.2 W |
|
Current Consumption |
500 mA |
|
Dimension |
100 mm x 100 mm x 139 mm |
|
Product Weight |
0.538 Kg |
|
Warranty |
As Per Manufacturer Terms And Condition |
