Product Details
＋

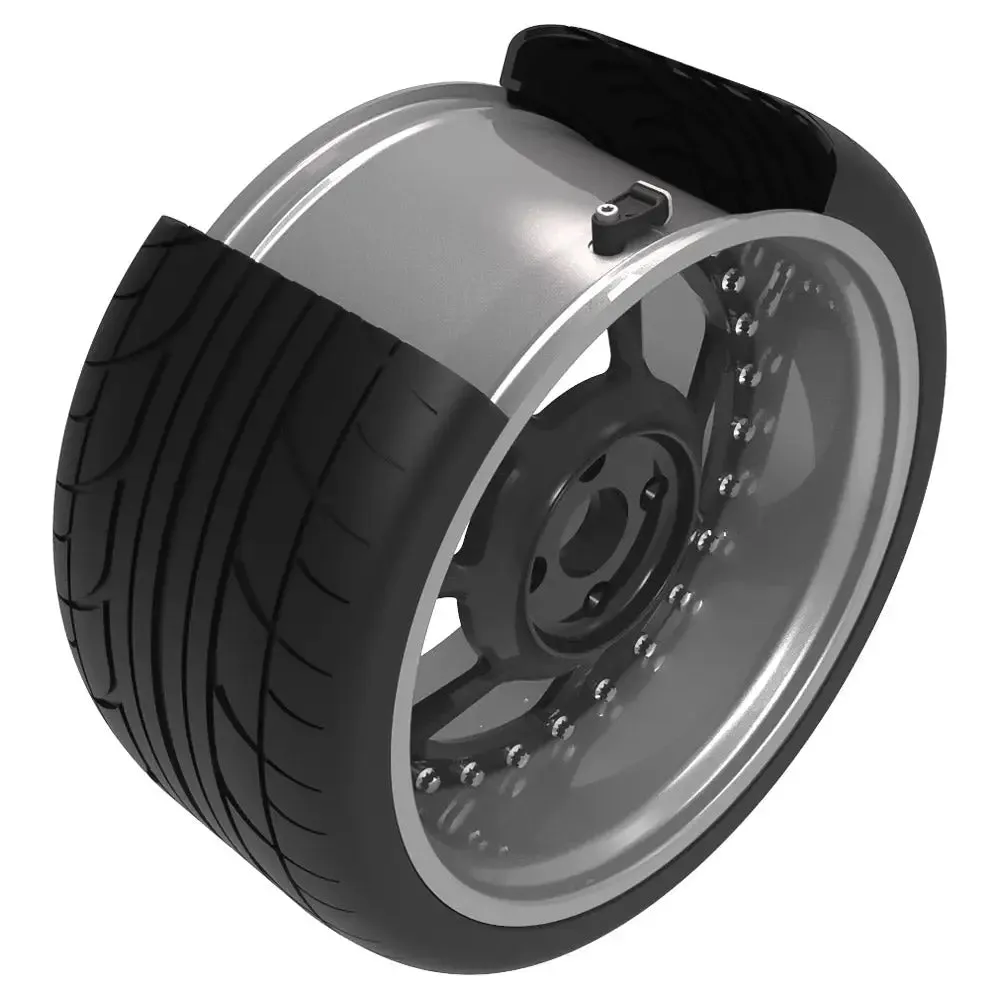

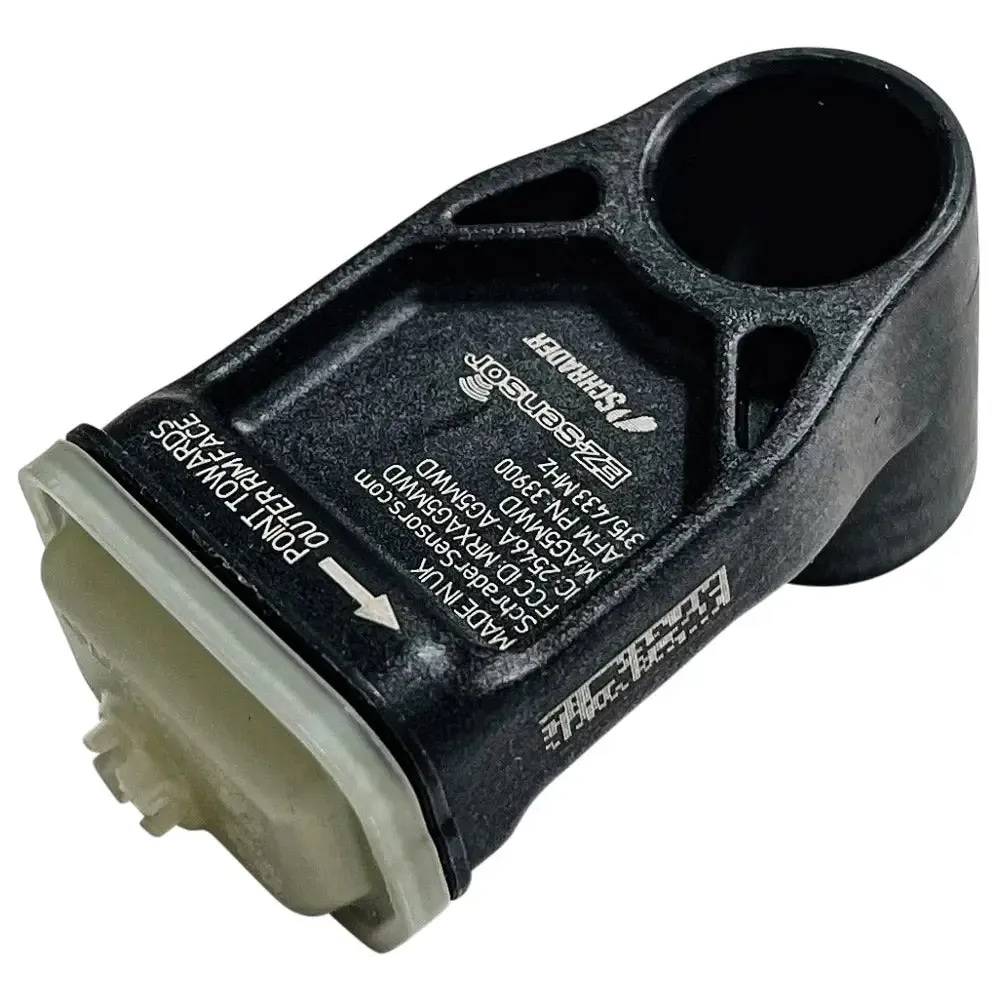

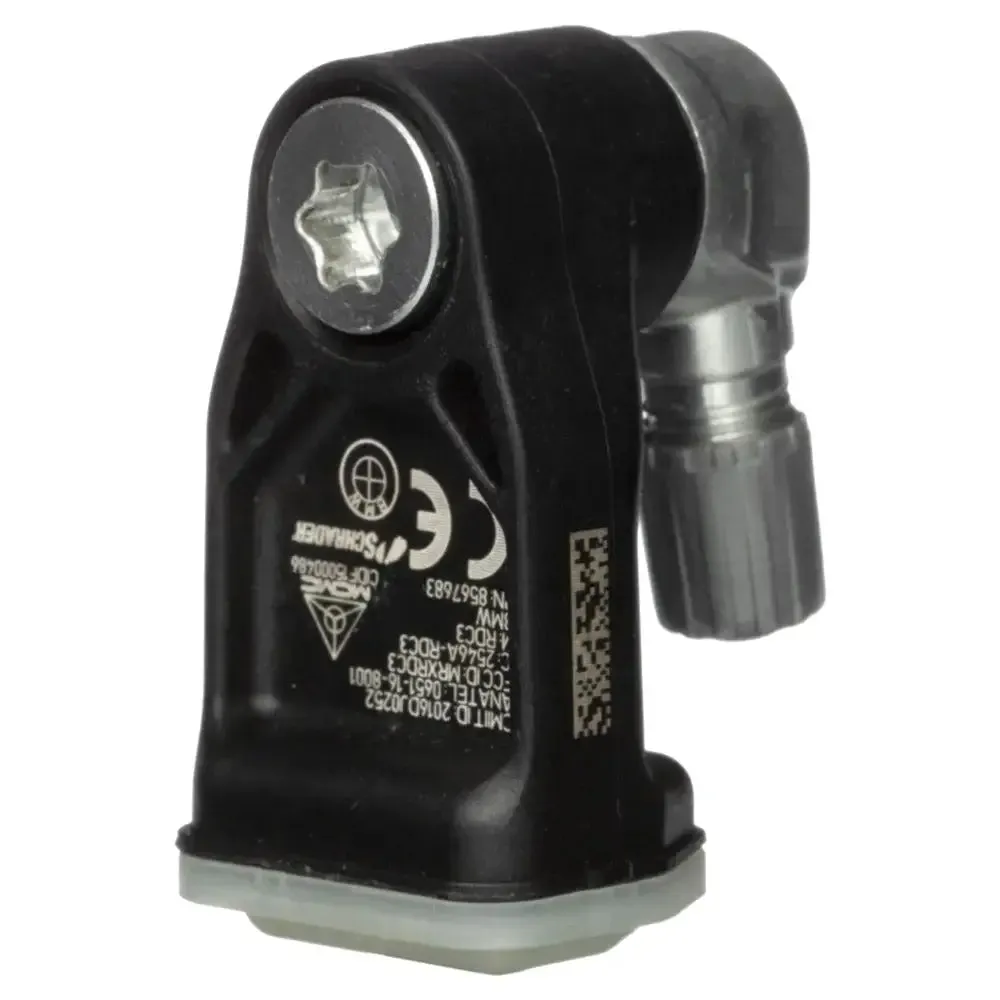

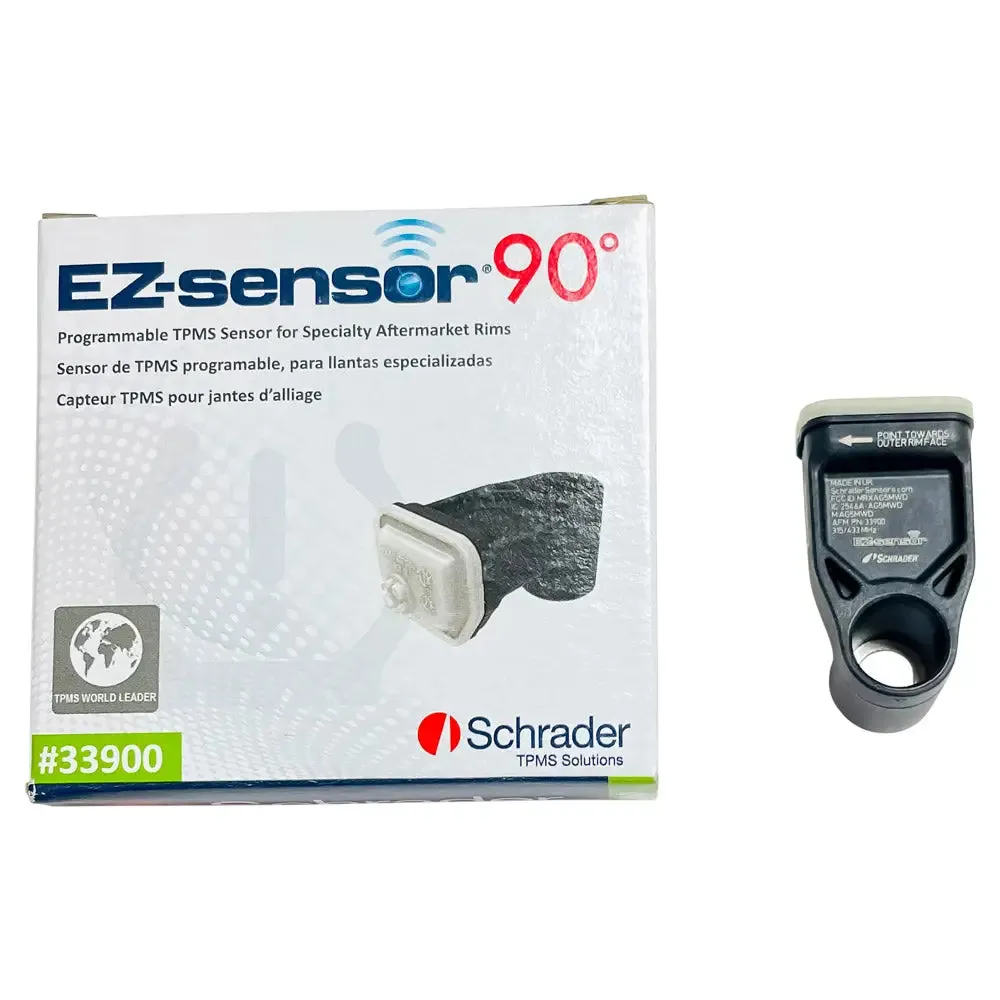

Looking for a TPMS sensor that fits perfectly into your aftermarket wheel applications with 90˚ valve holes? Look no further than Schrader's famous EZ-sensor. This 90˚ TPMS sensor features the same great technology and benefits that have made Schrader a household name.
*Valve stems are sold separately
Features:
- Combines 314.9, 315, and 433 MHz applications into a single SKU
- Multiple 90-degree aluminum valve stem options
- It comes “blank” and is fully programmable to the selected vehicle type
- Future-proofed to cover new and pending OE technologies
Benefits:
- First TPMS solution for 90˚ valve holes
- Two stem options to fit in more aftermarket wheels
- Aluminum stems are available in silver and black matte colors
- OE approved
Specs:
Maximum Speed Rating: 150 MPHMaximum Pressure Rating: 115 PSI
Nut Torque: 71 in-lbs
Valve Core Torque: 3.5 in-lbs
Service Kit Ref. No.:

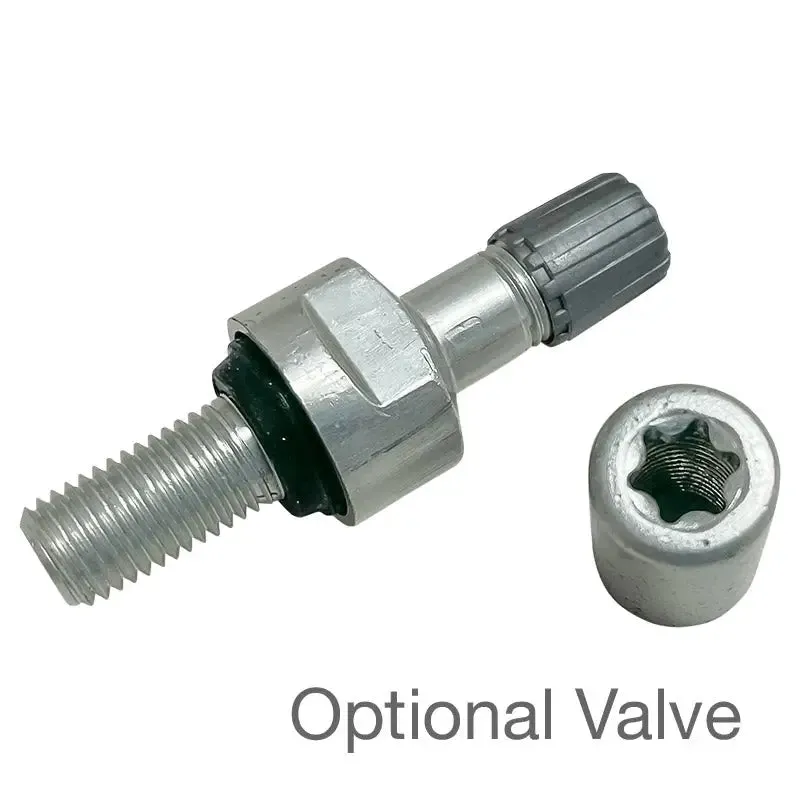

25080 - 90deg. Aluminum Straight Stem

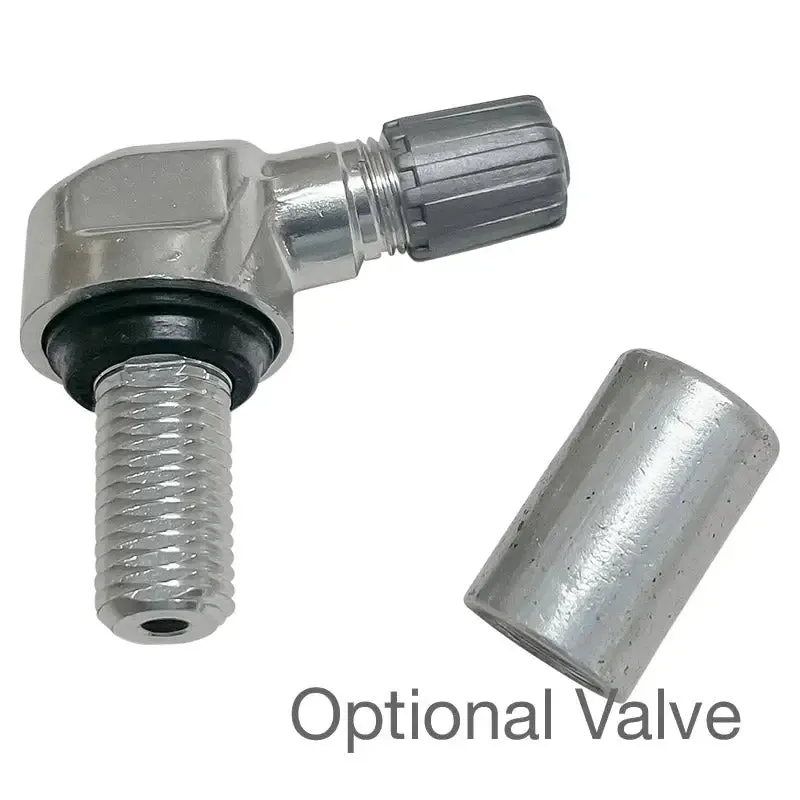

25078 - 90deg. Aluminum Angeled Stem

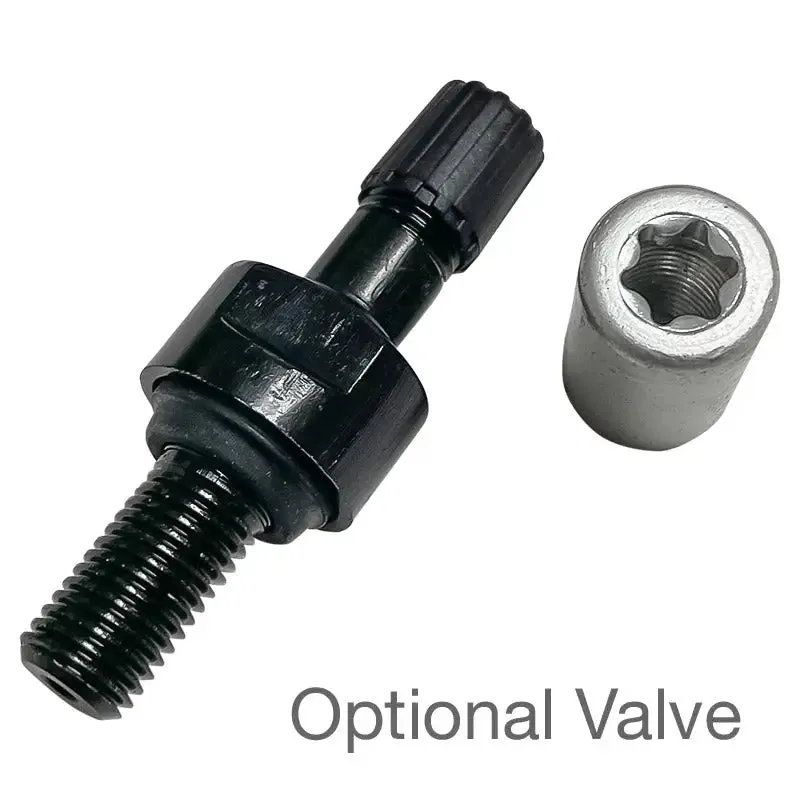

25083 - 90deg. Aluminum Black Straight Stem

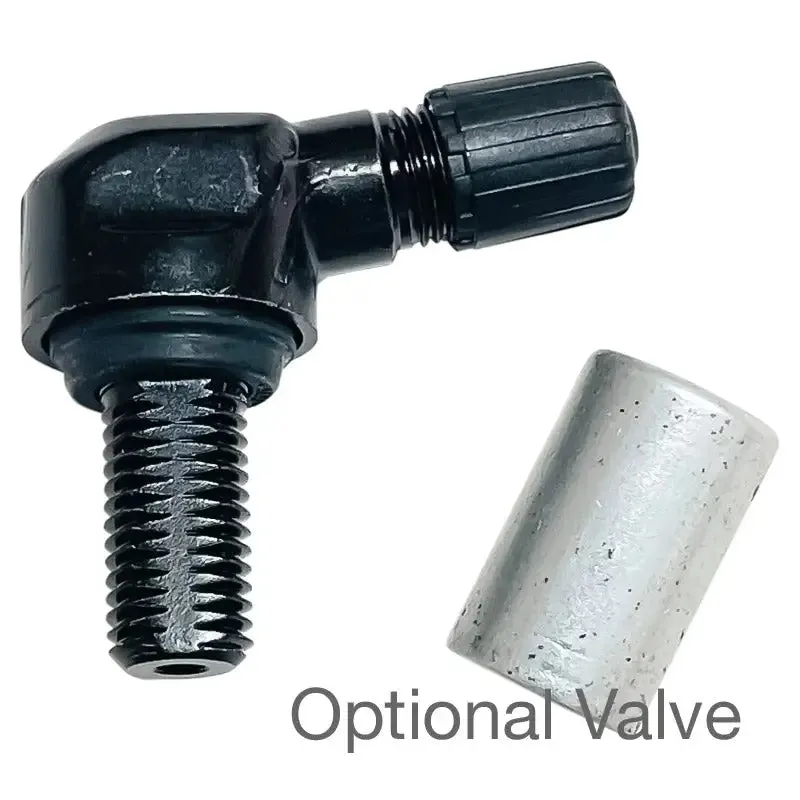

25082 - 90deg. Aluminum Black Angeled Stem
