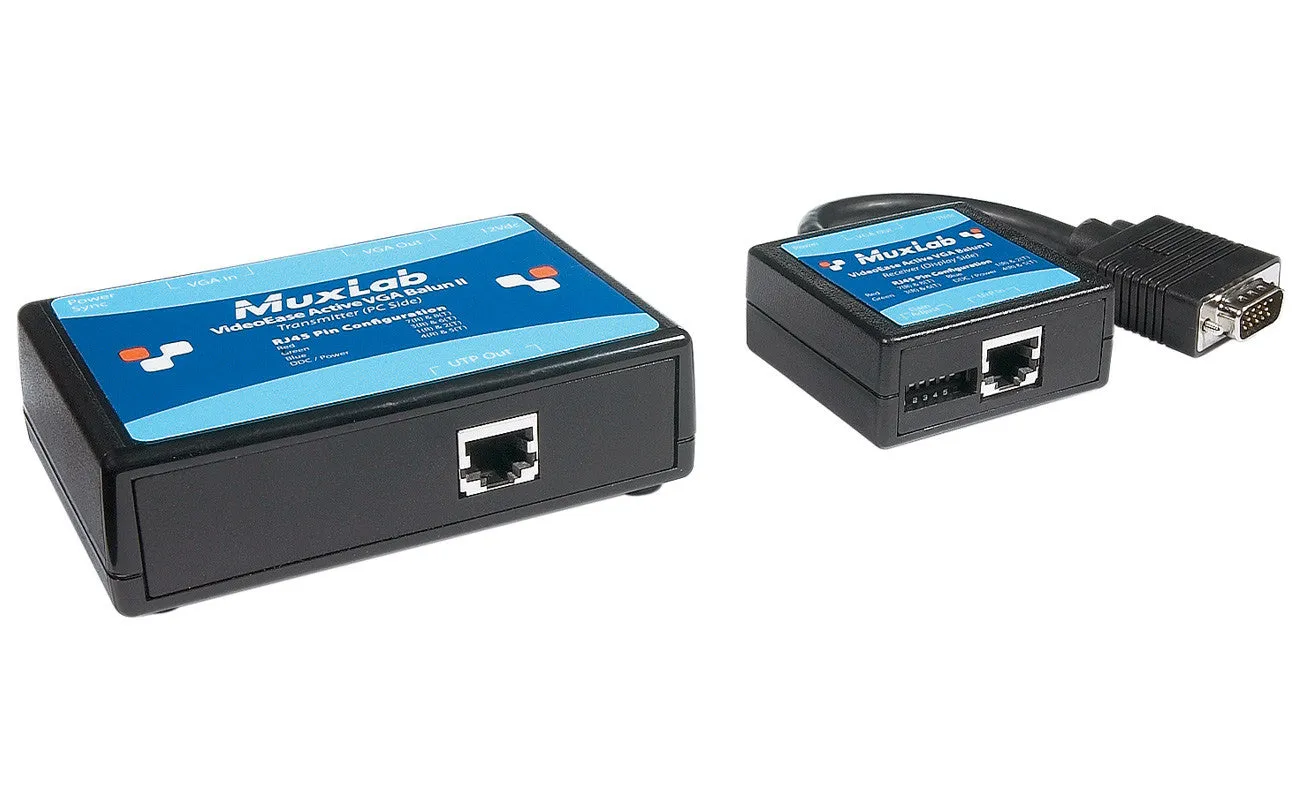

The Active VGA Balun II Kit allows VGA orcomponent video to be transmitted via costefficient unshielded copper twisted cable in a point-to-point configuration. The productsupports remote power pass-thru and is DDCcompliant with all "plug-and-play" laptops, PCs and displays.

Supports up to 1920 x 1440 pixels and 1080p resolution and features manual gain adjustment and local monitor output for added versatility. Applications include; Digital signage, residential, boardroom, classroom, medical imaging video systems.

Features

• Up to 600 ft (180m) via Cat5e/6 @ 1920 x 1440
• Up to 600 ft (180m) via Cat5e/6 @ 1080p
• Remote power pass-thru up to 150 ft (46m)
• DDC1/DDC2 (Plug-and-Play) Compliant
• Manual gain compensation
• Local monitor output
• Ground loop isolation

Max Distances for VGA via Cat 5E/6
Up to three (3) transmitters may be cascaded. Loss of 100 ft (30m) for every Tx cascaded @ 1024x768.

• 640 x 480 (VGA): 1000 ft (305m)
• 800 x 600 (SVGA): 1000 ft (305m)
• 1024 x 768 (XGA): 1000 ft (305m)
• 1280 x 1024 (SXGA):850 ft (260m)
• 1600 x 1200 (UXGA):800 ft (245m)
• 1366 x 768 (WXGA):850 ft (260m)*
• 1680x1050 (WSXGA):850 ft (260m)
• 1920 x1200 (WUXGA):600 ft (180m)**

*Cat6:Skew is noticeable at 300' (90m)
**Cat6:Skew is noticeable at 200' (60m)

Max Distance for Component Video(YPbPr) via Cat 5E/6
Up to four (4) transmitters may becascaded

• 480i/p: 1,000 ft (305 m) 1080i: 850 ft (260 m)
• 1080p: 600 ft (180 m)
• VGA-to-component video cables required at both ends (not included)

Kit Includes

• Transmitter
• Receiver
• Two Power Supplies
