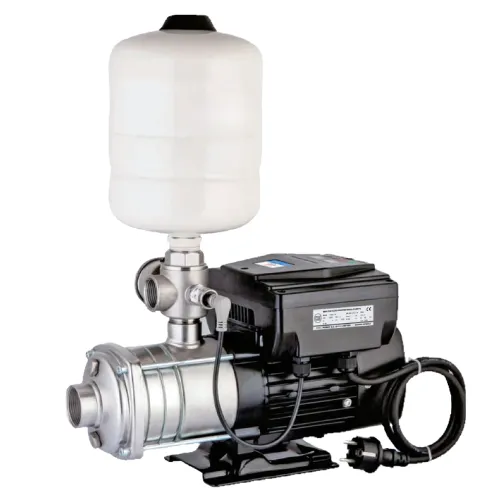

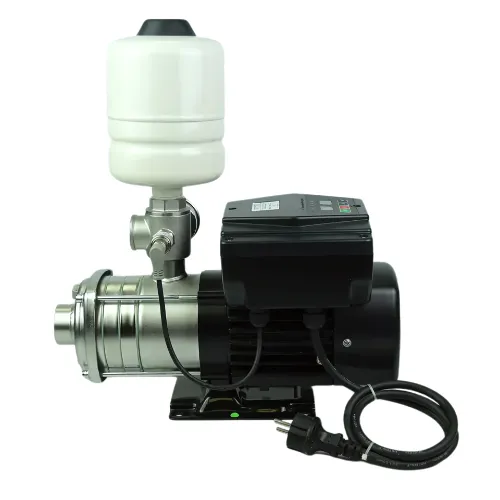

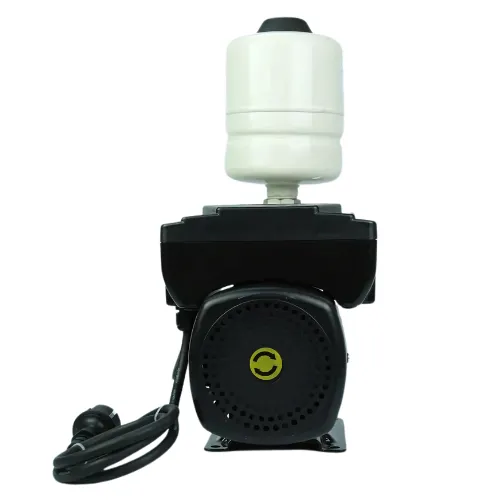

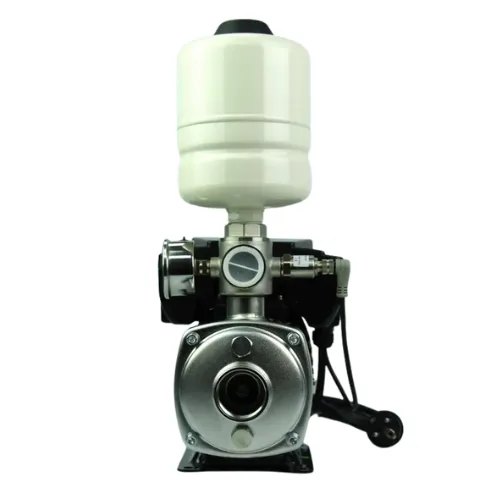

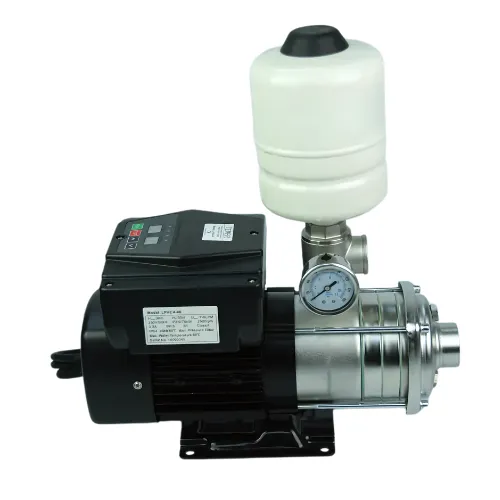

I-Prez 0.75kw  VSD Pressure Booster Pump - Variable Speed Pump

I-Prez series pumps are domestic pressure boosting systems with built-in variable speed drive (VSD) for constant pressure in the pipe line.

The pressure transmitter in this system monitors the demand and regulates the pump speed to maintain constant pressure at any time.

It protects the system from dry run, over loading, unbalanced voltages, short circuits etc.

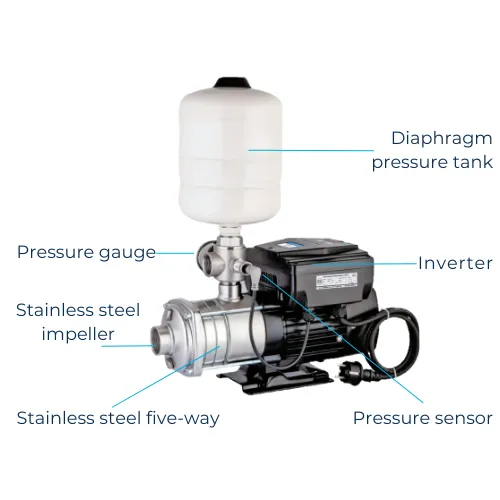

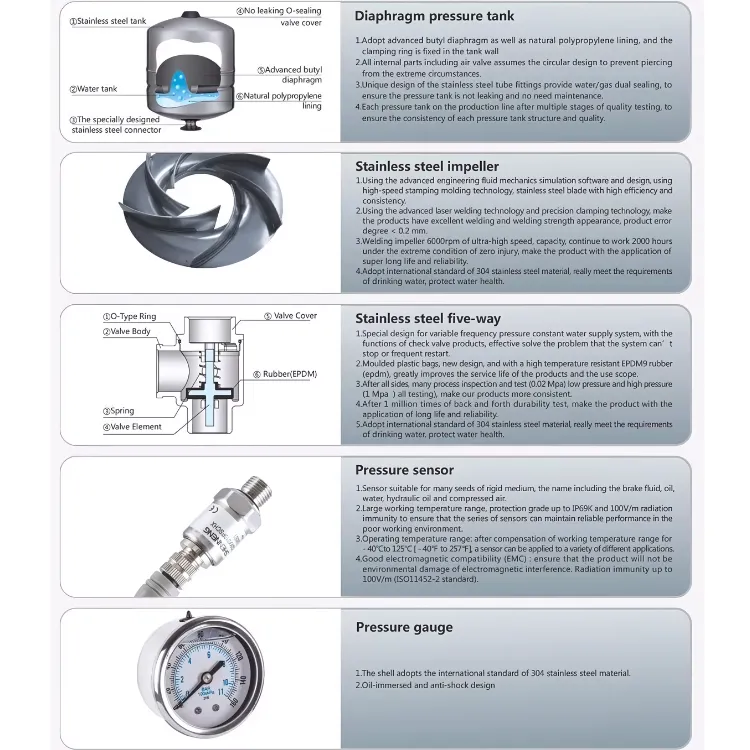

The system is made up of; a horizontal multistage pump, VDF, 5 way connector with NRV, pressure tank., pressure gauge & pressure transmitter.

APPLICATIONS:

Variable Speed Multistage pressure pumps are ideal for water supply to the whole house, irrigation, amenity blocks, industrial wash down areas and stock watering etc. T

The VSD controller can be set at a pressure within the pumps capacity which is measured with a pressure transducer on the outlet, the pump will ramp up or down as water is used on demand at the set pressure with no fluctuation making the these pumps highly efficient to run compared to traditional pumps.

FEATURES:

• Effective Energy Saving
• Maintains constant pressure with built in VDF
• Easy to install
• Compact design
• Digital display to monitor the pump speed, pressure etc.
• Adjustable output pressure settings
• User friendly operations
• Protect from dry run, over load, unbalanced voltage, short circuit etc.
• Complete stainless steel pump portion

SPECIFICATIONS:

• Power Range: 0.75kw
• Input Voltage – 220V
• Frequency -50/60Hz
• VFD Output – 1~220V 3~220V
• Output Frequency: 20~50 Hz/20~60 Hz
• Pressure Settings Range: 1~9 Bar
• Pressure transmitter: 24V. 4-20mA
• Ambient Temperature: 0~40 degrees Celsius
• Liquid Temperature: 0~70 degrees Celsius
• Head Range: up to 60m
• Flow Range: up to 16m3/h
