Product Details



Features:

  • Meets IEC 61010-031 safety standard
  • Power and over-range indicators
  • Up to ±700 V / ±7,000 V differential
  • 70 MHz bandwidth (-3 dB)
  • High accuracy ±2%
  • High CMRR
  • High voltage input accessories
  • Reference SI-9010A
  • Optional power adapter, 9 V 500 mA (CT3723)

User applications include:

  • Precise power semiconductor device measurements
  • Switching power supply design
  • Measurement of power converters
  • Precise measurement of motor drives

Kit contains:

  • Differential probe
  • (2) HV hook probes, black & red (CT4384)
  • (4) AA batteries
  • User manual

High voltage differential probes allow for safe, accurate measurements between two voltage points where neither point is referenced to ground and voltages reach to ±7,000 V.

Model CT3683 features 100x/1000x attenuation settings, 70 MHz bandwidth, ±7,000 V maximum differential, and unique high voltage input leads and hook probes.

Compatible with oscilloscopes (with 1 MΩ input) from all major manufacturers, the probe can be battery operated or powered by a universal power adapter (not included).

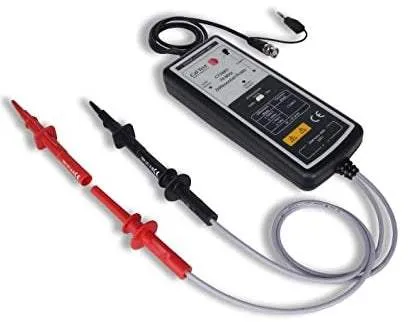

CT3683 Cal Test Voltage Probe New
  • DefaultTitle

$ 60.80

$ 46.77
