Product Details
＋

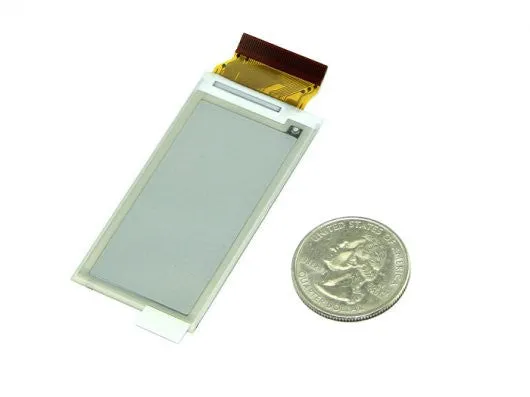

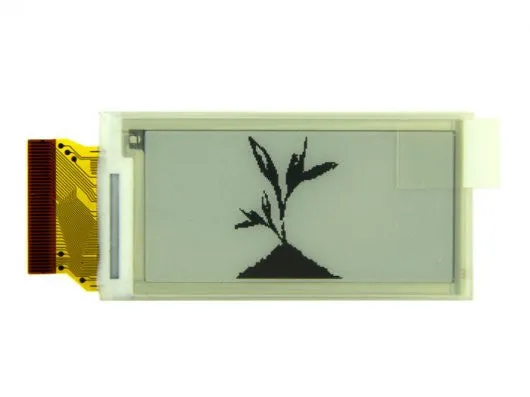

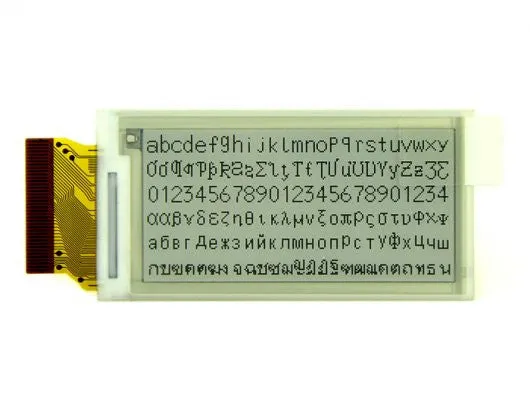

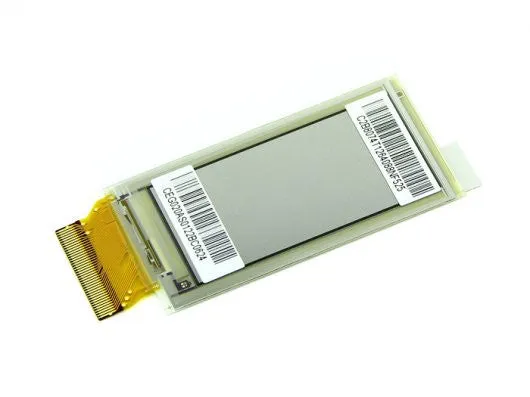

This is a 2.0’’ a-Si, active matrix TFT, Electronic Paper Display (EPD) panel. By combing the high resolution (117 dpi) of a TFT backplane and the dependability/maturity of E Ink technology, this display offers its user the freedom to display any image with excellent definition and contrast. It is ideal for mobile devices requiring slightly larger and higher-resolution displays or electronic price tags for higher-end data rich products. The small and thin form factor makes it easy to design it into a variety of applications, such as electronic shelf labels, medical devices, and mobile applications
Features
- Ultra low power consumption
- Super wide viewing angle - near 180°
- Extra thin & light
- High Resolution
- SPI interface
- RoHS compliant
Specification
- Outline(mm): 57.0(H) x 28.8(V) x 1.0(T)
- Resolution: 200 x 96
- Contrast Ratio: 7:1
- Interface: SPI
- Operation Temperature: 0~50°C
- Storage Temperature: -20~60°C
- Refresh Time(room temp.): 2 sec
- Pixel Pitch(mm): 0.229 x 0.229(111dpi)
- Pin Number: 40 pins(Connector STARCONN 089H40 or Compatible)
- Input Voltage: 3.0V
- FPC: 0.5mm pitch with stiffener
- FPL: V110
